Fully Automatic Electric Hot Water Boiler No Pollution For Medicine Industry

Name: Fully Automatic Electric Hot Water Boiler No Pollution For Medicine Industry
Brand: WILFORD
Price: 1 USD

Wholesale Fully Automatic Electric Hot Water Boiler No Pollution For Medicine Industry from china suppliers

Brand Name : WILFORD

Model Number : CWDR

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Export wooden Packing

Rated thermal power : 1.4-2.1MW

Total heating capacity : 1200000-1800000kcal

Input power : 1440-2160KW

Input current : 2160-3240A

Output : Hot water

operation : Automatic

Contact Now

Fully Automatic Electric Hot Water Boiler For Medicine Industry

Product introduction

This equipment has large capacity, long life, no noise and no pollution.

Its heat source is electricity, energy saving and environmental protection, no smoke emission, heat loss is minimal, and energy consumption is minimized.

Its control cabinet, production standards, exquisite workmanship, high level of protection.

The boiler and control cabinet are installed separately for ease of installation and maintenance.

Optional high quality controller to ensure safe and efficient operation of the boiler.

Intelligent, automated, and user-friendly.

Its alarm interlock protection device is very complete and the safety is very high.

Parameter

Type			CWDR0.7-95/70	CWDR1.05-95/70	CWDR1.4-95/70	CWDR2.1-95/70
Project		Unit	CWDR0.7-95/70	CWDR1.05-95/70	CWDR1.4-95/70	CWDR2.1-95/70
Rated thermal power		MW	0.7	1.05	1.4	2.1
Total heating capacity		104kcal	60	90	120	180
Rated working pressure		MPa	Ordinary Pressure
Input Power		KW	720	1080	1440	2160
Input current		A	1080	1620	2160	3240
Rated Voltage		V	3N AC 50HZ 380V
Power×Group		KW×P	36×20	36×30	36×40	36×60
Water inlet diameter		DN	100	80×2	80×2	150
Water outlet diameter		DN	100	100	100	150
Blowoff valve diameter		DN	50	50	50	50
Overall size	Length	mm	2500	2750	3100	3500
	Width	mm	1350	1500	1750	1960
	Height	mm	1700	2050	2200	2350
Weight		kg	1650	1870	2500	3960

Feature

1 . Follow the principle of constant temperature and energy saving

2 . Green, clean, no pollution

3 . Control cabinet and boiler are installed separately

4 . Using high quality heating tube

5 . Controller (frequent action is above 1000000)

6 . Automatic alarm protection device

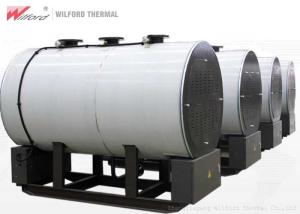

Product picture
